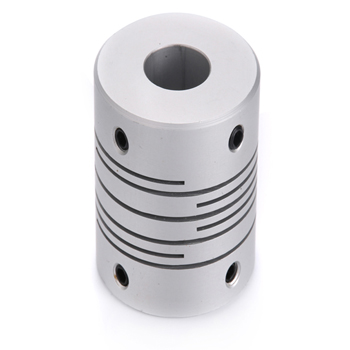

GKP-S系列定位螺丝固定平行式弹性联轴器 螺栓固定平切型弹性联轴器
特点:
一体成型的金属弹性联轴器
适用较小力矩的轴联接零回
转间隙弹性作用补偿径向
角向、轴向偏差
顺时针与逆时针回转特性完全相同
顶丝螺丝固定
规格详细技术参数
型号
Model |
外径
D
(mm) |
长度
L
(mm) |
螺丝
M |
d1/d2
轴径 (mm) |
拧紧
力矩(N.m) |
额定
扭距
(N.m) |
最大
扭距
(N.m) |
轴向
偏差
(mm) |
角向偏差(℃) |
最高轴速
(rpm ) |
重量
(g) |
GKC12×18.5S |
12 |
18.5 |
M3 |
3-5 |
0.6 |
0.2 |
0.4 |
±0.2 |
1.5 |
30000 |
4 |
GKC15.5×23S |
15.5 |
23 |
M3 |
3-5 |
0.7 |
0.2 |
0.4 |
±0.1 |
1.5 |
13000 |
10 |
GKC16×23S |
16 |
23 |
M3 |
4-6 |
0.7 |
0.3 |
0.6 |
±0.1 |
1.5 |
13000 |
11 |
GKC17.5×23S |
17.5 |
23 |
M3 |
4-6 |
0.7 |
0.3 |
0.6 |
±0.1 |
1.5 |
12000 |
12 |
GKC19×23S |
19 |
23 |
M3 |
5-8 |
0.8 |
0.4 |
0.7 |
±0.1 |
1.5 |
11000 |
16 |
GKC19.5×24.5S |
19.5 |
24.5 |
M4 |
5-8 |
1.5 |
0.4 |
0.8 |
±0.15 |
1.5 |
10000 |
17 |
GKC20×26S |
20 |
26 |
M4 |
5-9 |
0.7 |
1.2 |
2.3 |
±0.15 |
1.5 |
18000 |
18 |
GKC25×31S |
25 |
31 |
M4 |
8-12 |
1.7 |
1.4 |
2.8 |
±0.15 |
1.5 |
14000 |
39 |
GKC25×25S |
25 |
25 |
M4 |
5-10 |
1.7 |
1.4 |
2.8 |
±0.1 |
1.5 |
10000 |
32 |
GKC32×41S |
38.1 |
41.3 |
M5 |
8-15 |
3.7 |
4.5 |
9 |
±0.1 |
1.5 |
8000 |
170 |
GKC38.1×41.3S |
50 |
51 |
M6 |
12-19 |
4 |
9.1 |
18.2 |
±0.1 |
1.5 |
7000 |
240 |
GKC50×51S |
32 |
41 |
M5 |
10-14 |
1.7 |
2.8 |
5.6 |
±0.15 |
1.5 |
10000 |
72 |
